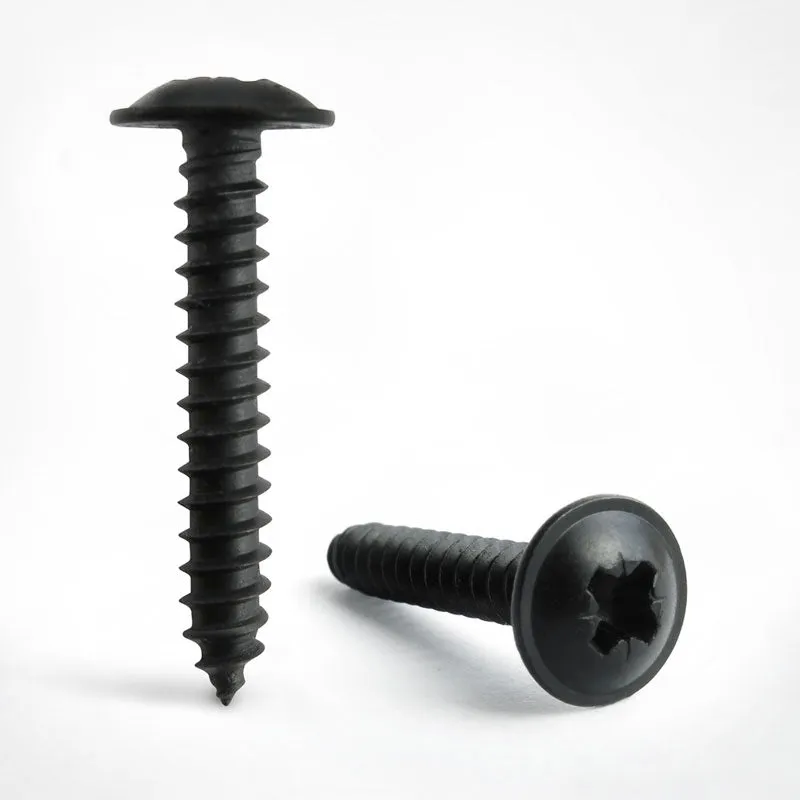

Black Stainless Steel Pozi Flange Self Tapping Screw
The domed pan flange head on this screw offers an attractive finish with no sharp edges. The self-tapping tip is designed to be used with pre-drilled pilot holes, the screw will then tap its own threads. The Pozi Drive offers excellent drive grip decreasing the risk of cam out.
- Pozi Drive
- Specification: BS 4174
- Black Stainless Steel Self Tapping Screw
- Made using Black A2-70 Stainless Steel
- Need a larger quantity? Call us for a quote.
| Gauge (G) | DK (max) | DC | K | H | Drive |
|---|---|---|---|---|---|
| #4 (2.9) | * | 6.53-6.12 | 1.60-1.35 | 0.64-0.48 | #1 |
| #6 (3.5) | * | 8.15-7.70 | 1.88-1.57 | 0.71-0.56 | #2 |
| #8 (4.2) | * | 9.75-9.24 | 2.36-2.01 | 0.79-0.64 | #2 |
| #10 (4.8) | * | 11.38-10.80 | 2.90-2.51 | 0.91-0.71 | #2 |
| #12 (5.5) | * | 13.00-12.37 | 3.15-2.74 | 0.96-0.84 | #3 |
Carbolts stock various gauges, if you don't see the gauge or length you require give us a call on 01422 881814, We'll do our very best to meet your requirements.
